Commercial & Decorating lights | LUNA MCFION Lighting
CMG-TS Spotlight

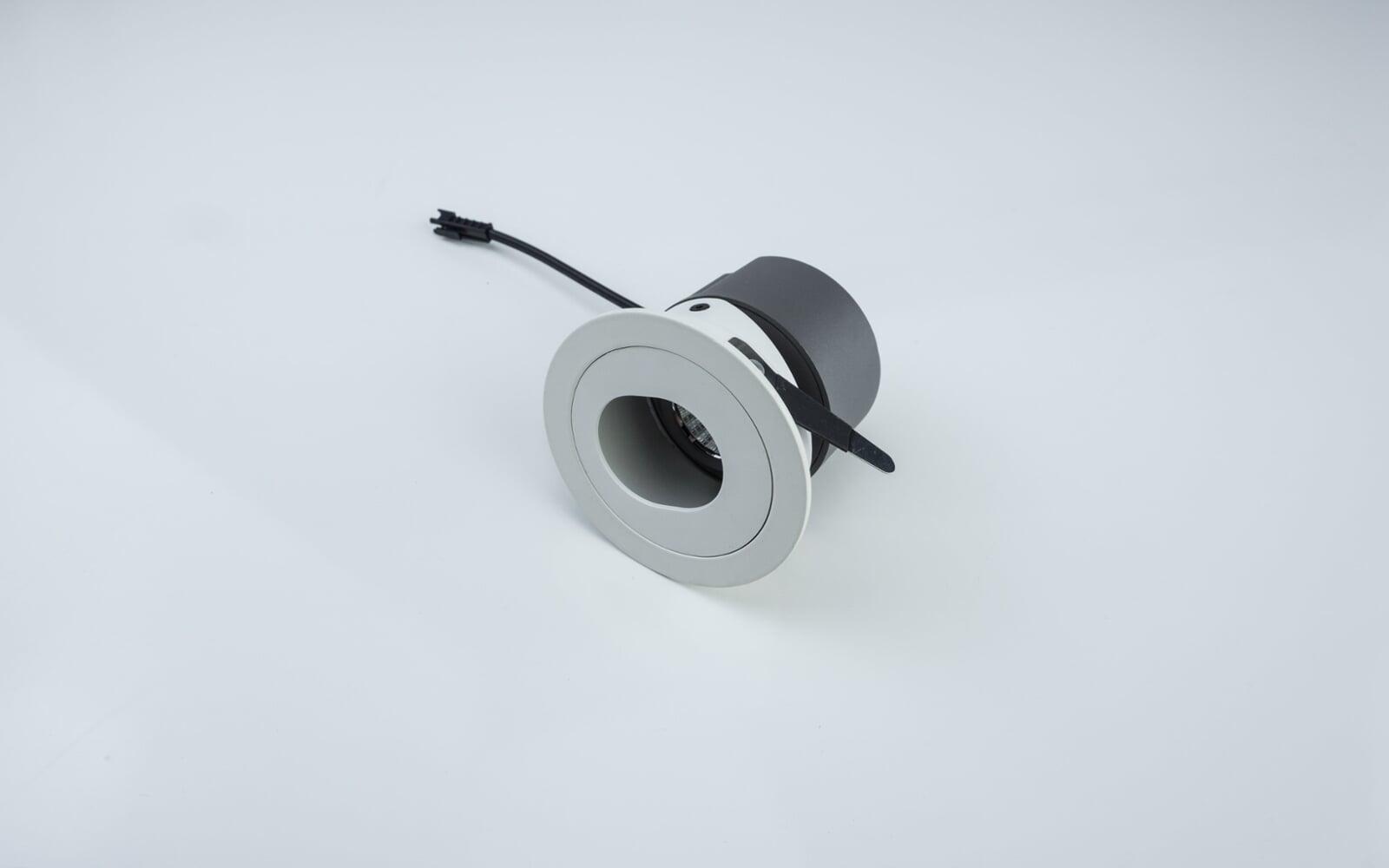

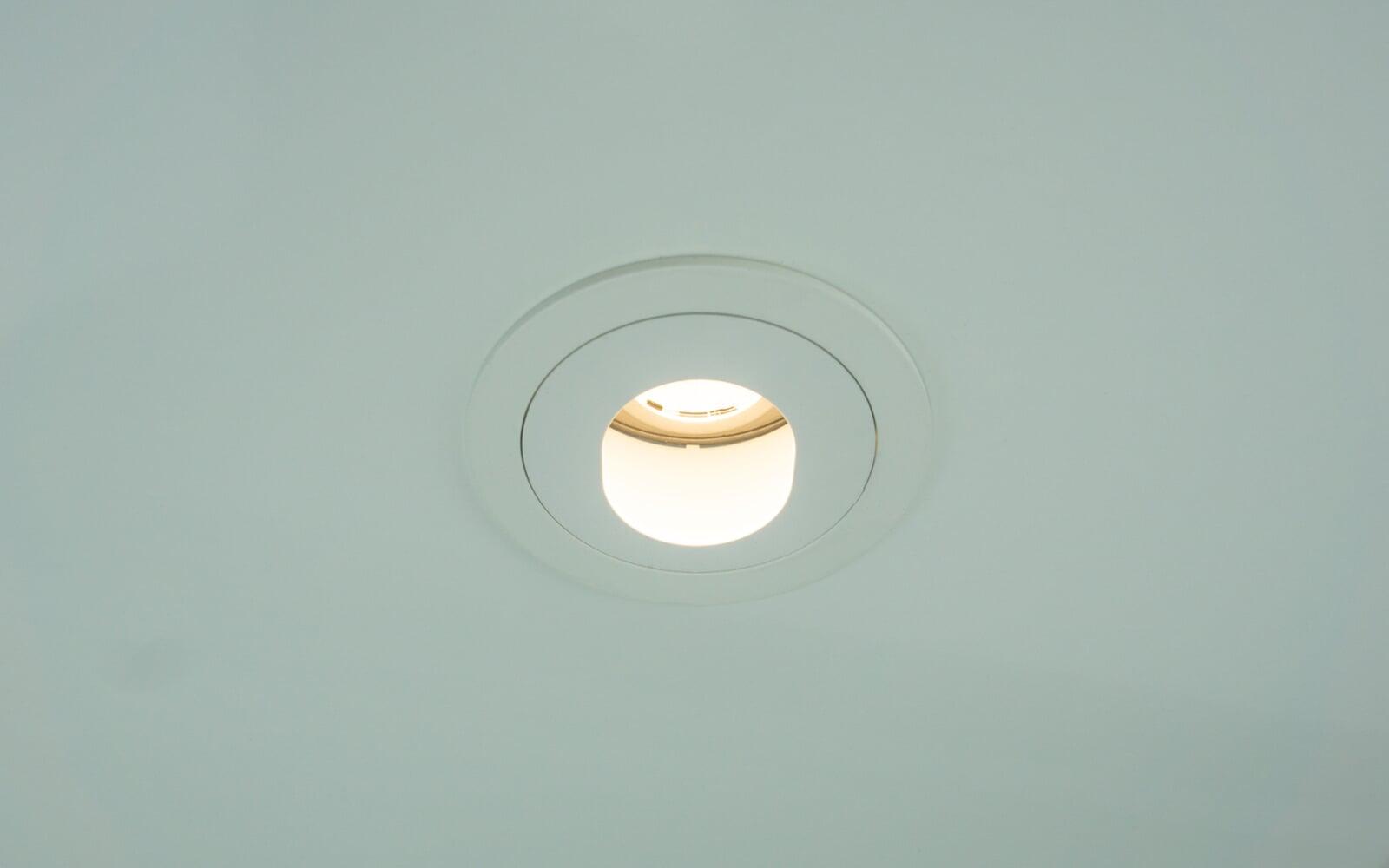

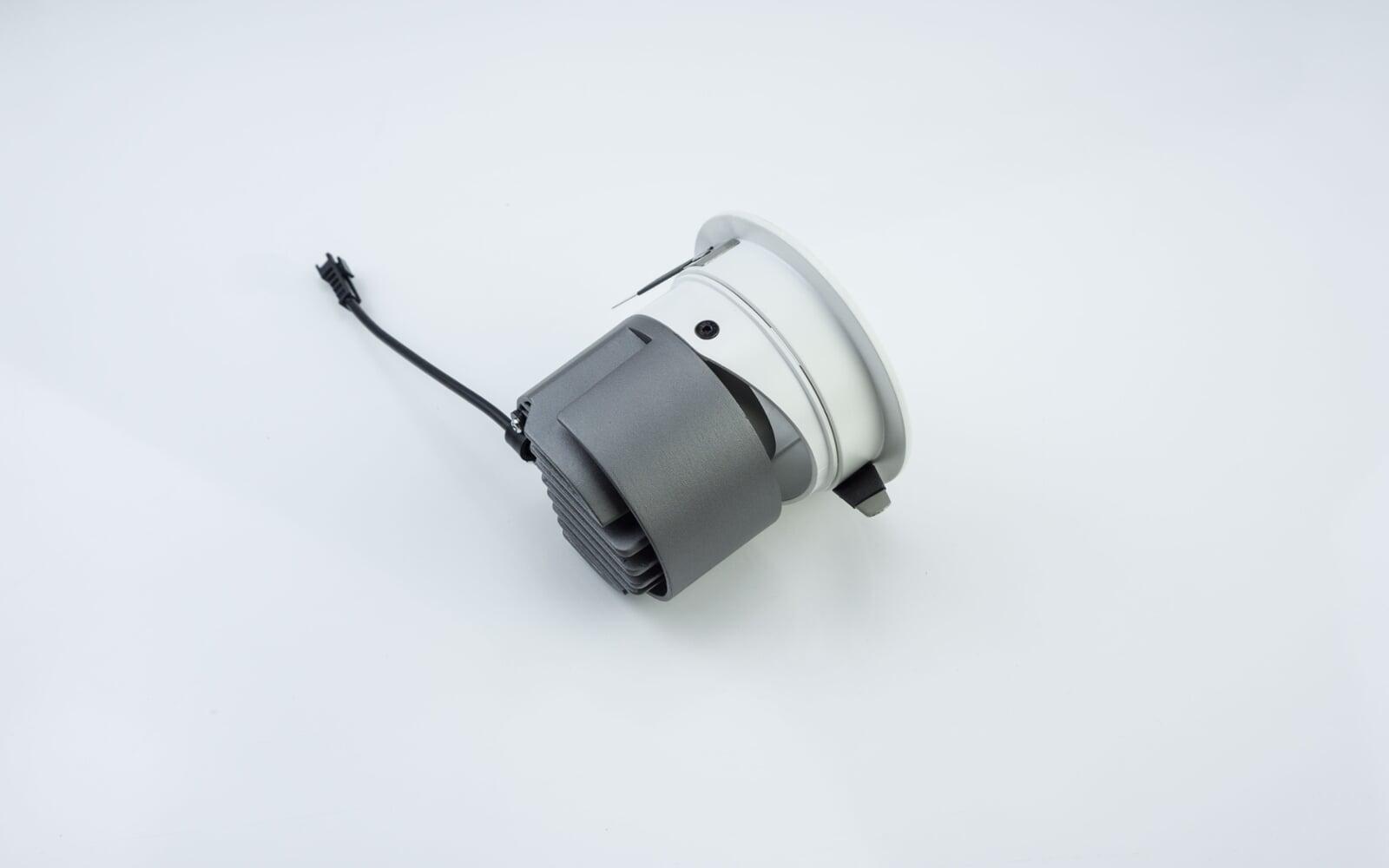

Surface Mounted Downlight 5-25W LN-CRP-ROUND-1
Bluetooth intelligent dimming and color matching wall washing lamp can be adjusted from 2700k yellow light to 6000K cold white light, and dimming from light to bright. It can be used in many occasions to turn on different lighting effects. A variety of wattage can be selected as 5W 10W 15W 25W. The shell is available in many colors, including black inner gun, bright silver inside, white inside, sub black, sub white, champagne gold, rose gold, small hole round shell and small hole oval shell.


Applications

architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows, service areas, offices, staterooms, schools, halls, households, et

LN-CRP-ROUND-5

  • Max. 5-7W
  • CREE CRI>80
  • Beam angle 15/24/38

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

5-7W

Input Voltage:

220-240V

Dimming:

On/Off

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

CREE

LED Chip Qty:

1pcs

LED Type:

COB

C.C.T.:

3000K, 4000K, 6000K

Color Randering Index:

> 80,>90

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

15°,24°,38°

Luminous Flux (LED):*

600lm

Lumen Efficiency(LED):*

120lm/W

Luminous Flux (Luminare):*

350lm (at 24°)

Lumen Efficiency (Luminare):*

70lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling surface decoration

Surface Treament:

Powder-coated, Ring: sanded white

Housing Color:

silver

IP Grade:

IP20

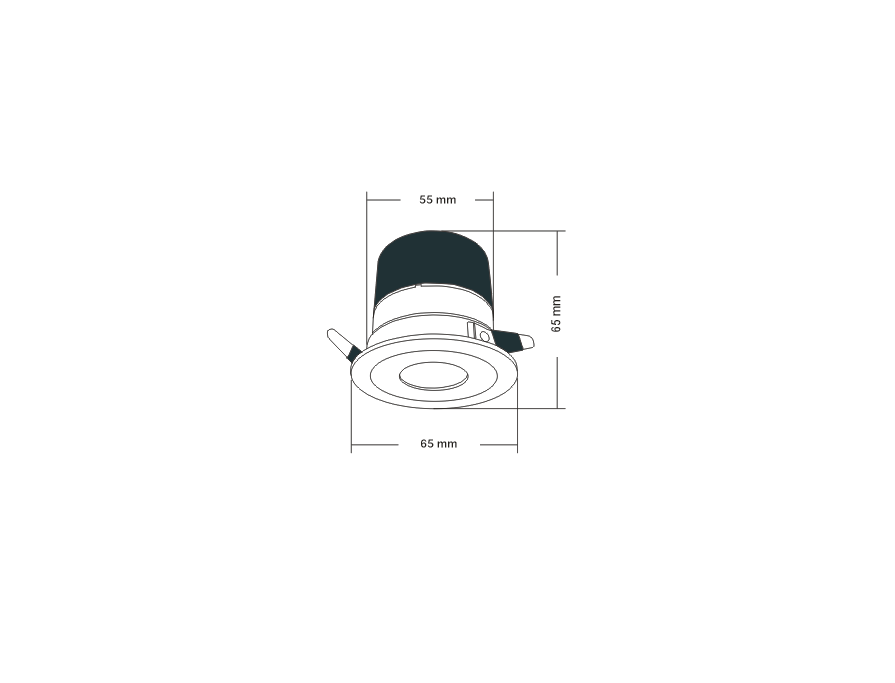

Size:

D65mm*H65mm

Cutout:

55mm

Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    LN-CRP-ROUND-10

    • Max. 10W
    • CREE CRI>80
    • Beam angle 15/24/38

    Need more help?

    Electrical
    LEDs
    Optical
    Materials
    Downloads
    On request
    Electrical

    Power:*

    10W

    Input Voltage:

    220-240V

    Dimming:

    On/Off

    Class:

    III SELV

    Ambient Temperature:

    0 - 40℃

    Relative humidity:

    <85%

    LEDs

    LED Brand:

    CREE

    LED Chip Qty:

    1pcs

    LED Type:

    COB

    C.C.T.:

    3000K, 4000K, 6000K

    Color Randering Index:

    > 80,>90

    Lumen Maintenance:

    LM80

    SDCM:

    4

    Optical

    Beam Angle:

    15°,24°,38°

    Luminous Flux (LED):*

    1200lm

    Lumen Efficiency(LED):*

    120lm/W

    Luminous Flux (Luminare):*

    700lm (at 24°)

    Lumen Efficiency (Luminare):*

    70lm/W (at 24°)

    Materials

    Body & Heatsink:

    Die-casting Aluminum

    Optics:

    Optical PMMA

    Installation:

    Ceiling surface decoration

    Surface Treament:

    Powder-coated, Ring: sanded white

    Housing Color:

    silver

    IP Grade:

    IP20

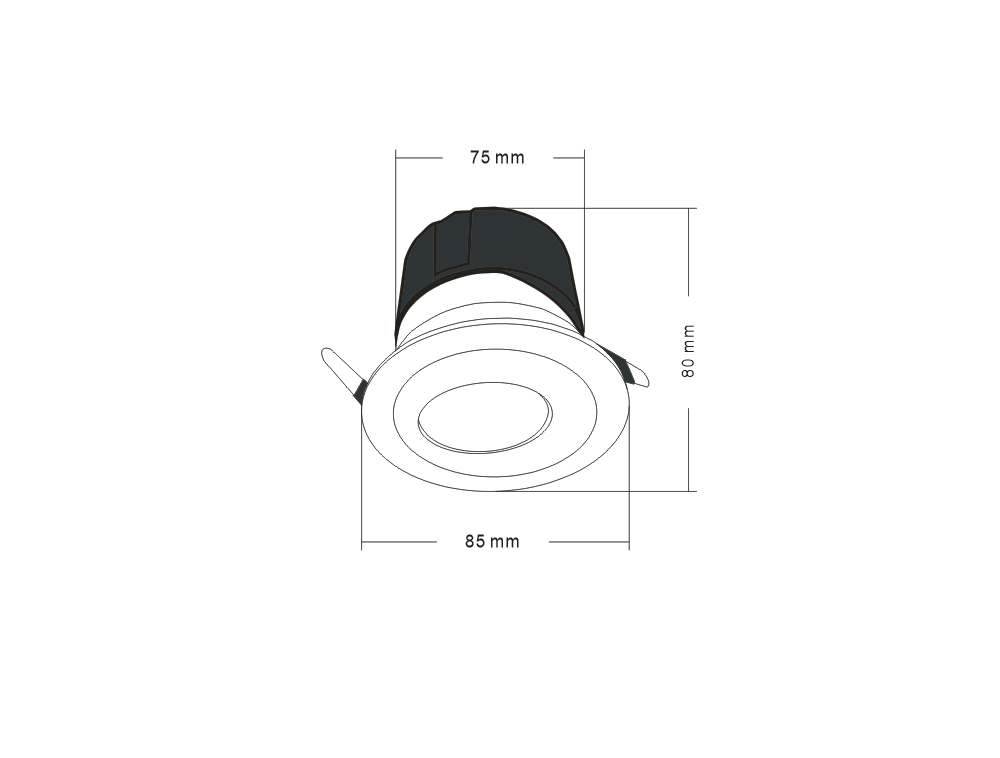

    Size:

    D85mm*H80mm

    Cutout:

    75mm

    Certificates:

    CE

    Downloads
    On request

    - different power, CRI, C.C.T..

    - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

    - other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

    - dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

    - emergency kit with specific duration.

      LN-CRP-ROUND-15

      • Max. 15W
      • CREE CRI>80
      • Beam angle 15/24/38

      Need more help?

      Electrical
      LEDs
      Optical
      Materials
      Downloads
      On request
      Electrical

      Power:*

      15W

      Input Voltage:

      220-240V

      Dimming:

      On/Off

      Class:

      III SELV

      Ambient Temperature:

      0 - 40℃

      Relative humidity:

      <85%

      LEDs

      LED Brand:

      CREE

      LED Chip Qty:

      1pcs

      LED Type:

      COB

      C.C.T.:

      3000K, 4000K, 6000K

      Color Randering Index:

      > 80,>90

      Lumen Maintenance:

      LM80

      SDCM:

      4

      Optical

      Beam Angle:

      15°,24°,38°

      Luminous Flux (LED):*

      1800lm

      Lumen Efficiency(LED):*

      120lm/W

      Luminous Flux (Luminare):*

      1125lm (at 24°)

      Lumen Efficiency (Luminare):*

      70lm/W (at 24°)

      Materials

      Body & Heatsink:

      Die-casting Aluminum

      Optics:

      Optical PMMA

      Installation:

      Ceiling surface decoration

      Surface Treament:

      Powder-coated, Ring: sanded white

      Housing Color:

      silver

      IP Grade:

      IP20

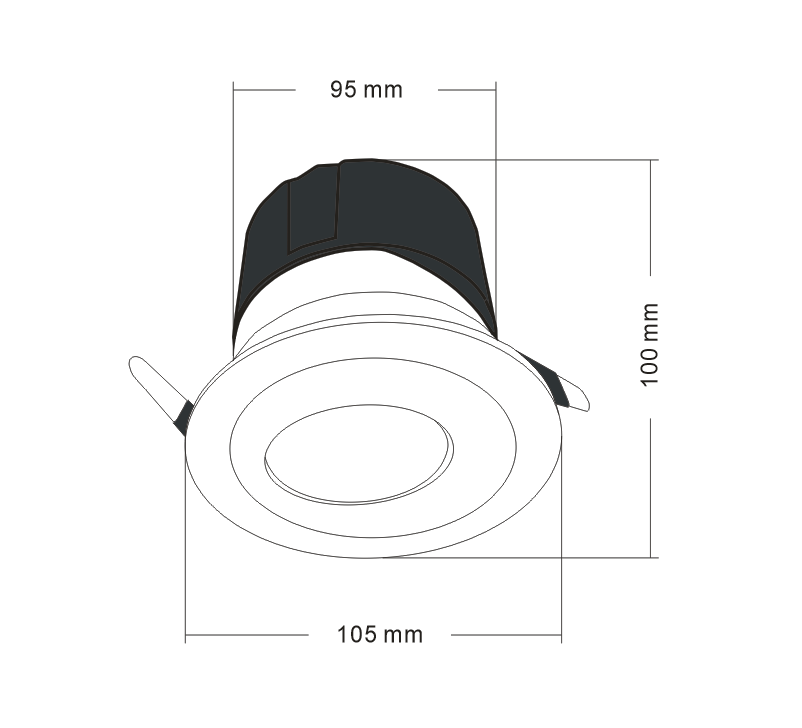

      Size:

      D105mm*H100mm

      Cutout:

      95mm

      Certificates:

      CE

      Downloads
      On request

      - different power, CRI, C.C.T..

      - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

      - other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

      - dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

      - emergency kit with specific duration.

        LN-CRP-ROUND-25

        • Max. 25W
        • CREE CRI>80
        • Beam angle 15/24/38

        Need more help?

        Electrical
        LEDs
        Optical
        Materials
        Downloads
        On request
        Electrical

        Power:*

        25W

        Input Voltage:

        220-240V

        Dimming:

        On/Off

        Class:

        III SELV

        Ambient Temperature:

        0 - 40℃

        Relative humidity:

        <85%

        LEDs

        LED Brand:

        CREE

        LED Chip Qty:

        1pcs

        LED Type:

        COB

        C.C.T.:

        3000K, 4000K, 6000K

        Color Randering Index:

        > 80,>90

        Lumen Maintenance:

        LM80

        SDCM:

        4

        Optical

        Beam Angle:

        15°,24°,38°

        Luminous Flux (LED):*

        3000lm

        Lumen Efficiency(LED):*

        120lm/W

        Luminous Flux (Luminare):*

        1875lm (at 24°)

        Lumen Efficiency (Luminare):*

        75lm/W (at 24°)

        Materials

        Body & Heatsink:

        Die-casting Aluminum

        Optics:

        Optical PMMA

        Installation:

        Ceiling surface decoration

        Surface Treament:

        Powder-coated, Ring: sanded white

        Housing Color:

        silver

        IP Grade:

        IP20

        Size:

        D130mm*H125mm

        Cutout:

        115mm

        Certificates:

        CE

        Downloads
        On request

        - different power, CRI, C.C.T..

        - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

        - other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

        - dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

        - emergency kit with specific duration.

          In the same series

          LN-CRP-ROUND-1

          5-25W

          LN-CRP-ROUND-2

          5-25W

          LN-CRP-ROUND-3

          5-25W

          LN-CRP-ROUND-4

          5-25W

          LN-CRP-ROUND-5

          5-25W

          LN-CRP-ROUND-6

          5-25W

          LN-CRP-ROUND-7

          5-25W

          LN-CRP-ROUND-8

          5-25W

          *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

          *Dimensions and specifications subject to alterations without notice.
